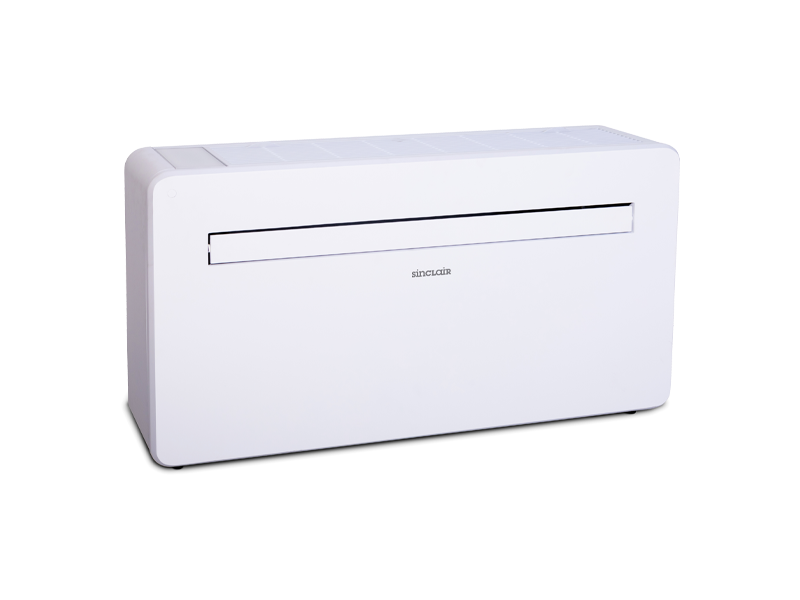

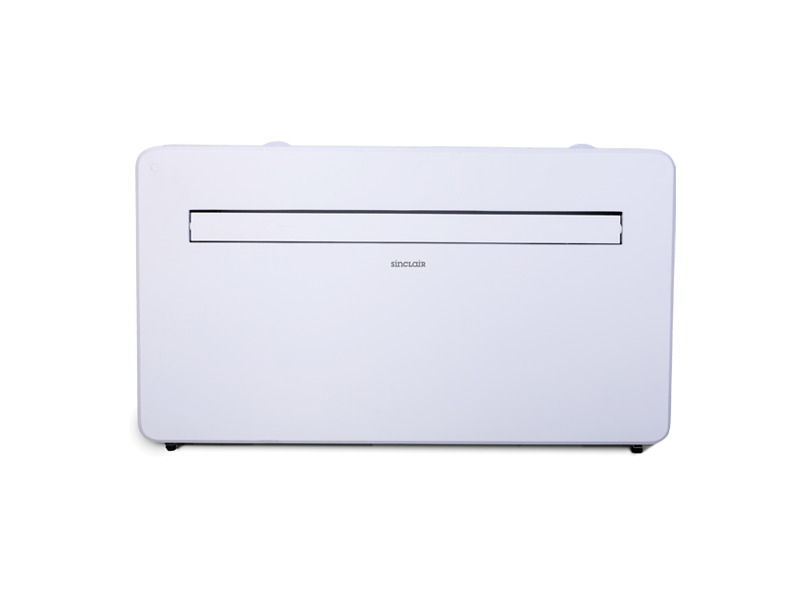

Sinclair ASM-12BI 3.5kW Smart Monobloc Air Conditioner with Heating
Sinclair ASM-12BI 3.5kW Smart Monobloc Air Conditioner with Heating
Year-round cooling and heating with no outdoor unit. The Sinclair ASM-12BI is an all-in-one wall-mounted air conditioner that sits neatly on the inside of an external wall and breathes through two discreet vents. No condenser on the outside of the house, no refrigerant pipework — just a clean, slim unit and two small grilles.
Why choose a monobloc
- Ideal where a split system isn't allowed or practical — flats, listed or rented properties, home offices and bedrooms
- Factory-sealed refrigerant circuit — no on-site refrigerant work
- DC inverter for efficient, steady running
- Cools in summer and heats in the shoulder months from the same unit
Features
- 3.5kW (12,000 BTU) cooling — suits rooms of roughly 25–30m²
- Four modes: cooling, heating, dehumidifying and fan
- Wi-Fi control from your phone via the Smart Life app
- Silent mode for a restful night's sleep
- Three fan speeds and automatic louver swing
- 24-hour on/off timer
- LED display with backlight off option for bedrooms

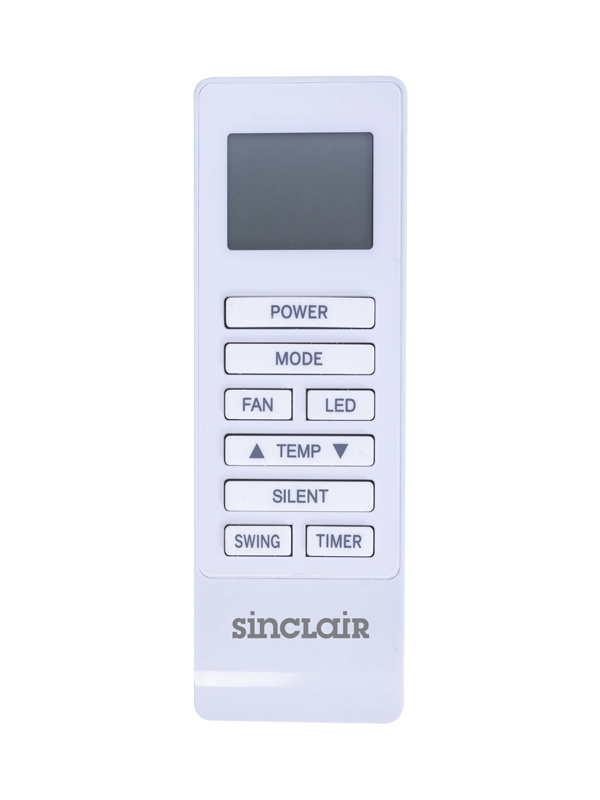

- Remote control included
Specifications
| Cooling / heating capacity | 3.5kW / 2.9kW |

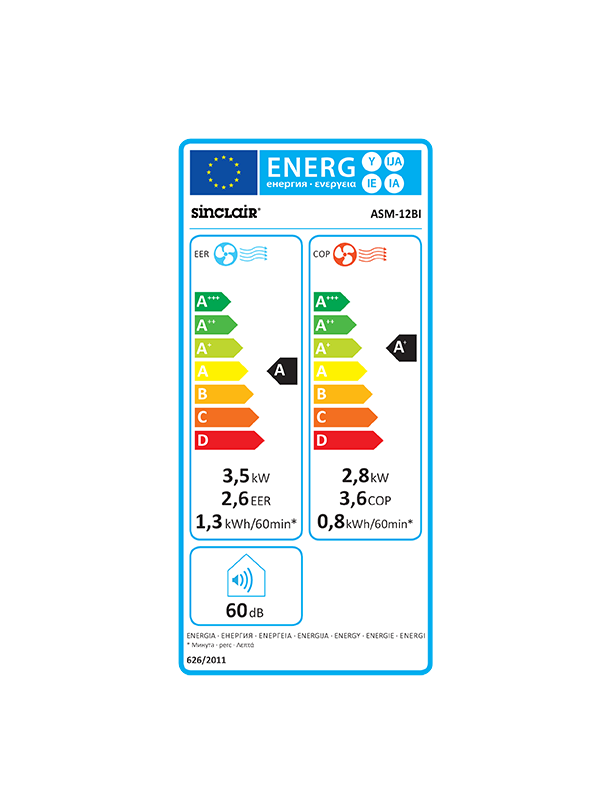

| Energy class | A cooling / A+ heating |
| EER / COP | 2.60 / 3.60 |
| Power input (cooling / heating) | 1.34kW / 0.775kW |
| Airflow | 520 m³/h |
| Dehumidification | 1.2 litres/hour |
| Sound pressure | 47dB(A) |
| Outdoor operating range | Cooling −5 to 43°C, heating −7 to 43°C |
| Dimensions (W × H × D) | 1000 × 585 × 205mm |
| Net weight | 45kg |
| Power supply | 230V / 50Hz, single phase, plug-in |
| Refrigerant | R32 (0.55kg, factory sealed) |
Installation requirements
- Must be fitted on a solid external wall — it vents directly through the rear
- Two 180mm core holes for the vents and one 25mm hole for the condensate drain
- Best performance on walls up to 240mm thick; maximum 450mm
- At least 10cm clearance to the sides and below, 20cm above
- Requires a 230V earthed socket — no extension leads
- At 45kg, a two-person lift onto the wall bracket
Want it fitted? Across the South East of England, our own engineers can supply and fit this unit, including core drilling, vent covers and making good. Ask about installation when you order.
In the box
Air conditioner, wall bracket, wall template, two vent ducting sheets, two internal/external vent cover assemblies, remote control, sealing strip, fixings and wall plugs.
